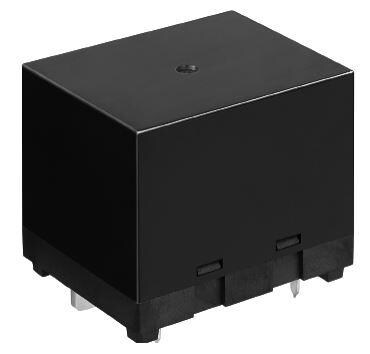

Pictures for reference only, please check the datasheet

HE1AN-W-DC9V-Y7

Name: HE1AN-W-DC9V-Y7
Brand: Panasonic
SKU: F012-HE1AN-W-DC9V-Y7-61-A-1841-X-Y-V99:2348_22615413
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Panasonic

Mfr. Part #:

HE1AN-W-DC9V-Y7

Walsoon Tech #:

F012-HE1AN-W-DC9V-Y7-61-A-1841-X-Y-V99:2348_22615413

Description:

Power Relay 9VDC 120A SPST-NO(50mm 40mm 43mm) THT

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

HE1AN-W-DC9V-Y7 Details
Packing And Shipping
Payment Method
Quality Control

Panasonic,HE1AN-W-DC9V-Y7 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for HE1AN-W-DC9V-Y7 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Coil current	278mA
Termination type	Through Hole
Coil Classes	无锁存
Contact Form	SPST (1 Form A)
Operating Temperature Range	-40°C~55°C
Relay type	General Purpose Relays
Coil Voltage	9 VDC
Contact Rated Current	120 A
Switching Voltage	480VAC-最大
工厂最小包装	10
寿命周期	量产
ROHS	yes
Package	插件
Height	47 mm
Length	50 mm
Width	40 mm
