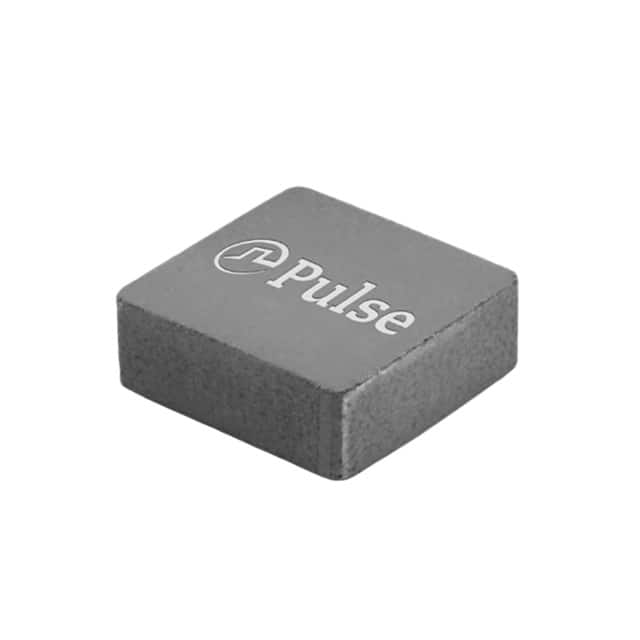

Pictures for reference only, please check the datasheet

PM2203.801NLT

Name: PM2203.801NLT
Brand: Pulse
SKU: F012-PM2203.801NLT-1084-A-0000-X-Y-V72:2272_22712367
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Pulse

Mfr. Part #:

PM2203.801NLT

Walsoon Tech #:

F012-PM2203.801NLT-1084-A-0000-X-Y-V72:2272_22712367

Description:

800nH 20% 5.5mm*5.3mm*3.1mm 5.65mΩ 13.1A 贴片 AEC-Q200

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PM2203.801NLT Details
Packing And Shipping
Payment Method
Quality Control

Pulse,PM2203.801NLT is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PM2203.801NLT to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Qualification level	AEC-Q200
Height	3.1mm
Inductance Value	800nH
Tolerance	20%
Termination type	贴片
DC Resistance DCR	5.65mΩ
Length	5.5mm
Width	5.3mm
Operating Temperature Range	-55°C~155°C
Saturation current	20A
Rated Current	13.1A
工厂最小包装	2000
寿命周期	量产
ROHS	yes
Brand	PulseElectronicsPower
Rated Current (DC current)	13.1A
shielding	无屏蔽
