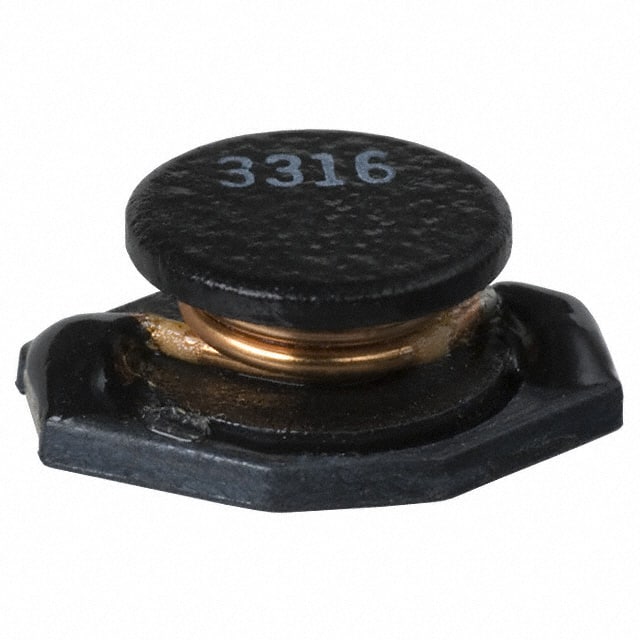

Pictures for reference only, please check the datasheet

PM3316-1R5M-RC

Name: PM3316-1R5M-RC
Brand: Bourns
SKU: F002-PM3316-1R5M-RC-21-A-1845-X-N-31324262
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Bourns

Mfr. Part #:

PM3316-1R5M-RC

Walsoon Tech #:

F002-PM3316-1R5M-RC-21-A-1845-X-N-31324262

Description:

1.5uH 20% 12.7mm*10mm*5.3mm 9mΩ 6.5A 贴片

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PM3316-1R5M-RC Details
Packing And Shipping
Payment Method
Quality Control

Bourns,PM3316-1R5M-RC is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PM3316-1R5M-RC to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Length	12.7mm
Width	10mm
Inductance Value	1.5uH
Termination type	贴片
Tolerance	20%
DC Resistance DCR	9mΩ
Height	5.3mm
Operating Temperature Range	-55°C~125°C
Operating Temperature-Max	125℃
Rated Current	6.5A
Operating Temperature-Min	-55℃
Saturation current	8A
工厂最小包装	1
寿命周期	量产
ROHS	yes
Rated Current (DC current)	6.5A
Brand	BournsInc.
Quality factor Q	50@3MHZ
Resonant frequency	95MHZ
shielding	无屏蔽
--	铁氧体
