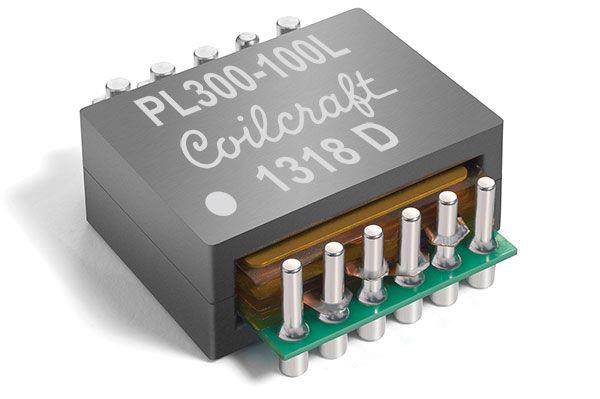

Pictures for reference only, please check the datasheet

PL300-100L

Name: PL300-100L
Brand: Coilcraft
SKU: F061-PL300-100L-109-C-24+-X-Y-1003001012585373
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Coilcraft

Mfr. Part #:

PL300-100L

Walsoon Tech #:

F061-PL300-100L-109-C-24+-X-Y-1003001012585373

Description:

Audio & Signal Transformers PL160 300W 0.0072Ohm Planar Trnsfmr

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PL300-100L Details
Packing And Shipping
Payment Method
Quality Control

Coilcraft,PL300-100L is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PL300-100L to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Inductance	211 uH
Insulation voltage	1.5 kV
Secondary coil impedance	4.2 mOhms
Termination type	Quick Connect
Primary coil impedance	7.2 mOhms, 7.2 mOhms
Frequency Range	200 kHz to 700 kHz
工厂最小包装	25
寿命周期	量产
ROHS	yes
Height	10.4 mm
Length	29.46 mm
Width	26.67 mm
