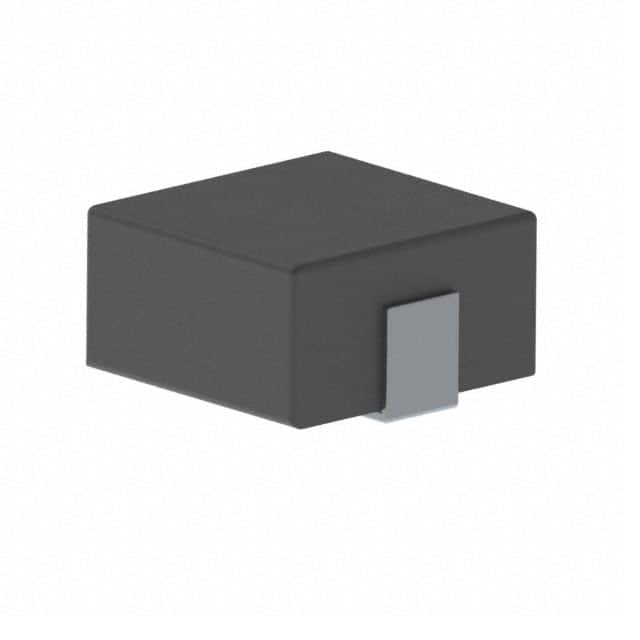

Pictures for reference only, please check the datasheet

HCM1A0503-100-R

Name: HCM1A0503-100-R
Brand: Eaton
SKU: F012-HCM1A0503-100-R-230-A-1743-X-Y-V72:2272_16660739
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Eaton

Mfr. Part #:

HCM1A0503-100-R

Walsoon Tech #:

F012-HCM1A0503-100-R-230-A-1743-X-Y-V72:2272_16660739

Description:

10uH 20% 5.5mm*5.3mm*3mm 108mΩ 2.4A 贴片 AEC-Q200

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

HCM1A0503-100-R Details
Packing And Shipping
Payment Method
Quality Control

Eaton,HCM1A0503-100-R is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for HCM1A0503-100-R to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Width	5.3mm
Inductance Value	10uH
Length	5.5mm
DC Resistance DCR	108mΩ
Qualification level	AEC-Q200
Operating Temperature-Max	155℃
Saturation current	2.3A
Operating Temperature-Min	-55℃
Rated Current	2.4A
Tolerance	20%
Termination type	贴片
Height	3mm
工厂最小包装	2000
寿命周期	量产
ROHS	yes
Rated Current (DC current)	2.4 A
Brand	Eaton
shielding	屏蔽
--	合金粉
