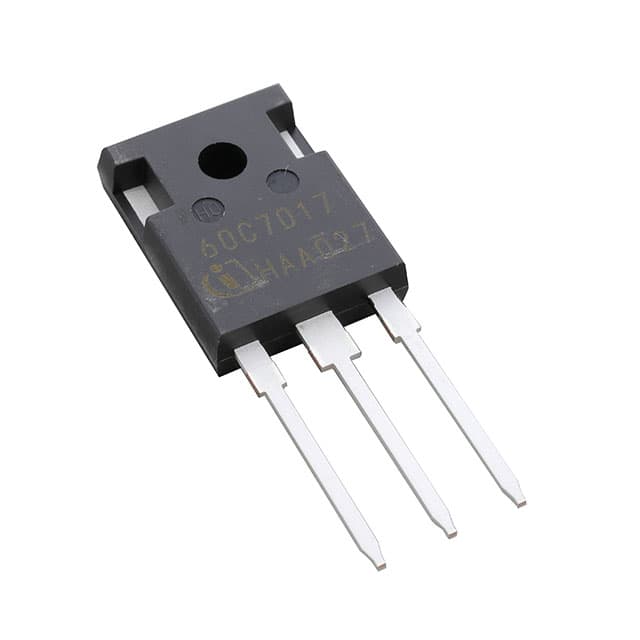

Pictures for reference only, please check the datasheet

IPW60R017C7XKSA1

Name: IPW60R017C7XKSA1
Brand: Infineon
SKU: F01202-IPW60R017C7XKSA1-1-A-2525-X-Y-E02:0323_10203616
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Infineon

Mfr. Part #:

IPW60R017C7XKSA1

Walsoon Tech #:

F01202-IPW60R017C7XKSA1-1-A-2525-X-Y-E02:0323_10203616

Description:

Trans MOSFET N-CH 600V 109A 3-Pin(3+Tab) TO-247 Tube

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

IPW60R017C7XKSA1 Details
Packing And Shipping
Payment Method
Quality Control

Infineon,IPW60R017C7XKSA1 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for IPW60R017C7XKSA1 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	TO-247-3
Continuous drain current	109 A
Pd-Power Dissipation	446 W
工厂最小包装	240
寿命周期	量产
ROHS	no
VGS	20 V
Transistor polarity	MOSFET
Rds On	17 mOhms
Operating Temperature Range	- 55 C~+ 150 C
VDS	600 V
Qg	240 nC
Height	21.1 mm
Termination type	Through Hole
Length	16.13 mm
Width	5.21 mm
Circuit Branch Number	1 Channel
