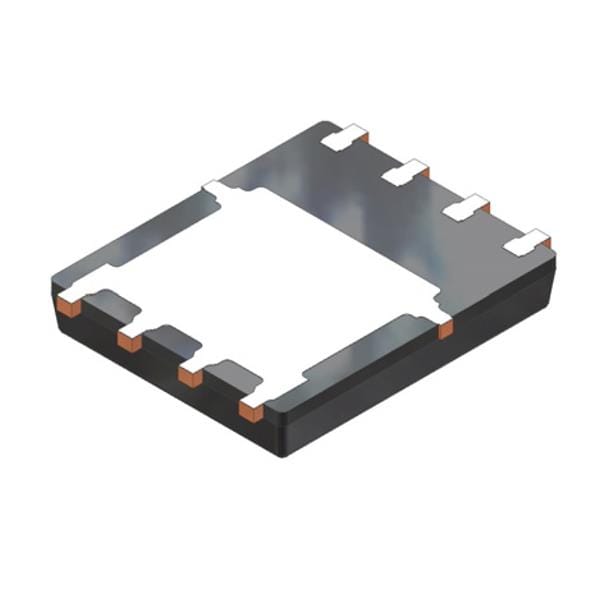

Pictures for reference only, please check the datasheet

FDMS86101DC

Name: FDMS86101DC
Brand: ON
SKU: F001-FDMS86101DC-4-A-0000-X-Y-512-FDMS86101DC
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

FDMS86101DC

Walsoon Tech #:

F001-FDMS86101DC-4-A-0000-X-Y-512-FDMS86101DC

Description:

表面贴装型 N 通道 100V 14.5A（Ta），60A（Tc） 3.2W（Ta），125W（Tc） Dual Cool™56

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

FDMS86101DC Details
Packing And Shipping
Payment Method
Quality Control

ON,FDMS86101DC is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for FDMS86101DC to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Rds On	7.5 mOhms
Termination type	SMD/SMT
VDS	100 V
Continuous drain current	14.5 A
Pd-Power Dissipation	125 W
工厂最小包装	3000
寿命周期	量产
ROHS	no
Package	DualCool-56-8
Circuit Branch Number	1 Channel
Qg	44 nC
Height	1.05 mm
Operating Temperature Range	- 55 C~+ 150 C
Length	6 mm
Width	5 mm
VGS	20 V
Transistor polarity	MOSFET
