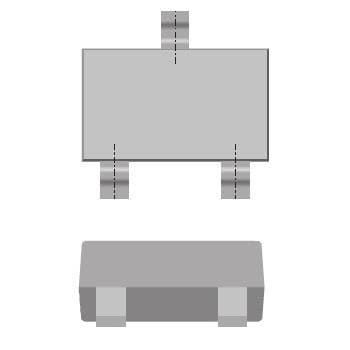

Pictures for reference only, please check the datasheet

BAT54SW-AU_R1_000A1

Name: BAT54SW-AU_R1_000A1
Brand: PANJIT
SKU: F001-BAT54SW-AU_R1_000A1-162-A-0000-X-Y-241-BAT54SWAUR1000A1
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

PANJIT

Mfr. Part #:

BAT54SW-AU_R1_000A1

Walsoon Tech #:

F001-BAT54SW-AU_R1_000A1-162-A-0000-X-Y-241-BAT54SWAUR1000A1

Description:

肖特基二极管与整流器 /L44/TR/7"/HF/3K/SOT-323/SKY/SOT/SSM-02TACS/SSM02-QIG1/PJ///

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

BAT54SW-AU_R1_000A1 Details
Packing And Shipping
Payment Method
Quality Control

PANJIT,BAT54SW-AU_R1_000A1 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for BAT54SW-AU_R1_000A1 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Vr-reverse voltage	30V
Operating Temperature Range	-55℃~+125℃
If-forward Current	200mA
Forward Surge Current	600mA
Qualification level	AEC-Q101
Operating Temperature-Max	+125℃
Vf-Forward Voltage	600mV
Package	SOT-323
Operating Temperature-Min	-55℃
工厂最小包装	3000
寿命周期	量产
ROHS	yes
Termination type	贴片
Reverse Leakage Current	2uA
Temperature Coefficient	肖特基
Configuration	1对串联式
