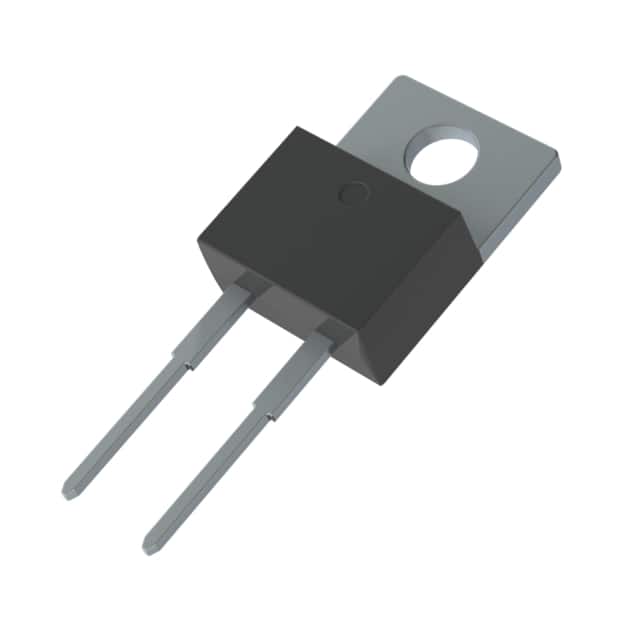

Pictures for reference only, please check the datasheet

PCDP10120G1_T0_00001

Name: PCDP10120G1_T0_00001
Brand: PANJIT
SKU: F004-PCDP10120G1_T0_00001-162-A-0000-X-Y-3757-PCDP10120G1_T0_00001-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

PANJIT

Mfr. Part #:

Walsoon Tech #:

F004-PCDP10120G1_T0_00001-162-A-0000-X-Y-3757-PCDP10120G1_T0_00001-ND

Description:

肖特基二极管与整流器 1200V SiC Schottky Barrier Diode

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PCDP10120G1_T0_00001 Details
Packing And Shipping
Payment Method
Quality Control

PANJIT,PCDP10120G1_T0_00001 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PCDP10120G1_T0_00001 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Vf-Forward Voltage	1.7V
Operating Temperature-Min	-55℃
Operating Temperature-Max	+175℃
If-forward Current	10A
Package	TO-220AC
junction capacitance	529pF
Operating Temperature Range	-55℃~+175℃
Reverse recovery time	0nS
Forward Surge Current	640A
Vr-reverse voltage	1.2kV
寿命周期	量产
ROHS	no
Reverse Leakage Current	100uA
Termination type	通孔
Pd-Power Dissipation	151.5W
Temperature Coefficient	碳化硅
