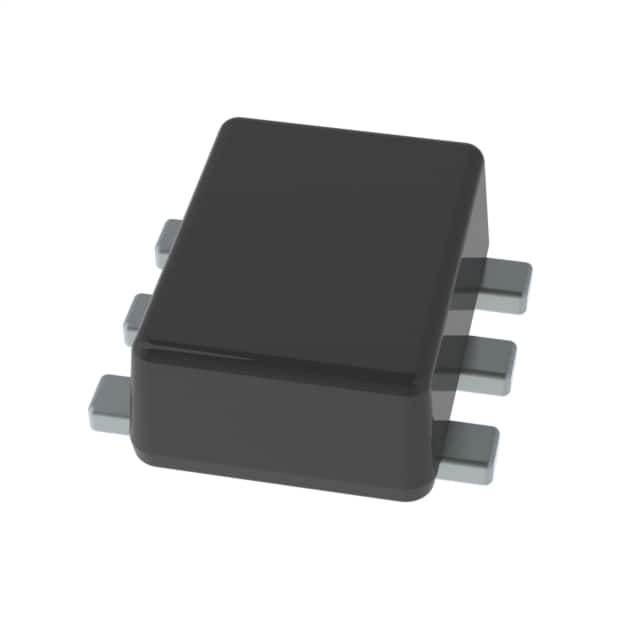

Pictures for reference only, please check the datasheet

PJX8808_R1_00001

Name: PJX8808_R1_00001
Brand: PANJIT
SKU: DFBA04-Y-PJX8808_R1_00001-162-C-20+-X-N
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

PANJIT

Mfr. Part #:

PJX8808_R1_00001

Walsoon Tech #:

DFBA04-Y-PJX8808_R1_00001-162-C-20+-X-N

Description:

SOT-563 ESD:Y Polarity:N/N Config.:Dual VDS V:20 VGS \u00b1V:10 ID A:0.5 RDS(on) Max. (m\u03a9) 10V:- RDS(on) Max. (m\u03a9) 7V:- RDS(on) Max. (m\u03a9) 6V:- RDS(on) Max. (m\u03a9) 4.5V:400 RDS(on) Max. (m\u03a9) 2.5V:650 RDS(on) Max. (m\u03a9) 1.8V:800 RDS(on) Max. (m\u03a9) 1.5V:1200 RDS(on) Max. (m\u03a9) 1.2V:3000 Ciss Typ. pF:67 VGS(th) Max. V:0.9 Qg Typ. (nC) 10V:- Qg Typ. (nC) 4.5V:1.4

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PJX8808_R1_00001 Details
Packing And Shipping
Payment Method
Quality Control

PANJIT,PJX8808_R1_00001 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PJX8808_R1_00001 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	SOT-563
Pd-Power Dissipation	300mW
Continuous drain current	500mA
工厂最小包装	4000
寿命周期	量产
ROHS	yes
Transistor polarity	双N沟道
VGS	900mV @ 250uA
VDS	-20V
Rds On	400mΩ @ 500mA,4.5V
