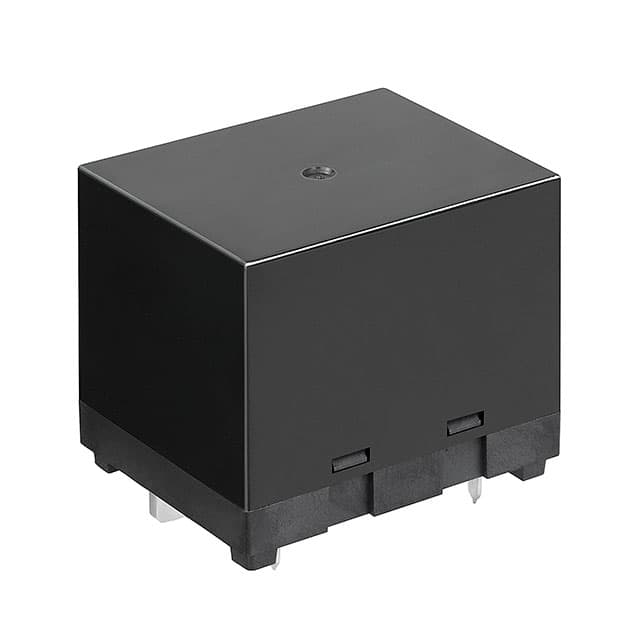

Pictures for reference only, please check the datasheet

HE1AN-W-DC12V-Y7

Name: HE1AN-W-DC12V-Y7
Brand: Panasonic
SKU: F002-HE1AN-W-DC12V-Y7-61-A-0000-X-N-87333888
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Panasonic

Mfr. Part #:

HE1AN-W-DC12V-Y7

Walsoon Tech #:

F002-HE1AN-W-DC12V-Y7-61-A-0000-X-N-87333888

Description:

Power Relay 12VDC 120A SPST-NO(50mm 40mm 43mm) THT

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

HE1AN-W-DC12V-Y7 Details
Packing And Shipping
Payment Method
Quality Control

Panasonic,HE1AN-W-DC12V-Y7 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for HE1AN-W-DC12V-Y7 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Coil Classes	无锁存
Coil Voltage	12 VDC
Contact Form	SPST (1 Form A)
Coil current	208mA
Contact Rated Current	120 A
Termination type	Through Hole
Operating Temperature Range	-40°C~55°C
Relay type	General Purpose Relays
Switching Voltage	480VAC-最大
工厂最小包装	10
寿命周期	量产
ROHS	yes
Height	47 mm
Package	50 mm40 mm47 mm
Length	50 mm
Width	40 mm
