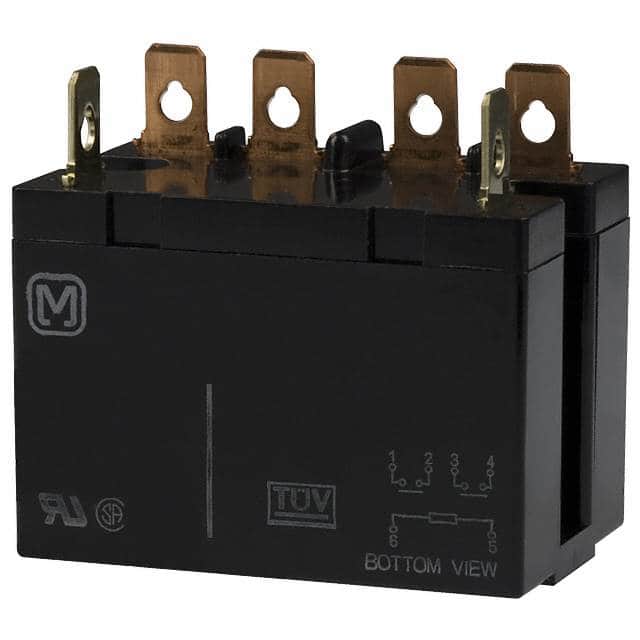

Pictures for reference only, please check the datasheet

HE2AN-DC24V

Name: HE2AN-DC24V
Brand: Panasonic
SKU: DFBA213-Y-HE2AN-DC24V-61-C-0000-X-Y
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Panasonic

Mfr. Part #:

HE2AN-DC24V

Walsoon Tech #:

DFBA213-Y-HE2AN-DC24V-61-C-0000-X-Y

Description:

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

HE2AN-DC24V Details
Packing And Shipping
Payment Method
Quality Control

Panasonic,HE2AN-DC24V is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for HE2AN-DC24V to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Contact Form	DPST (2 Form A)
Operating Temperature Range	-50°C~55°C
Switching Voltage	277VAC，30VDC-最大
Relay type	General Purpose Relays
Contact Rated Current	25A
Termination type	Socket
Coil Voltage	24 VDC
Coil current	80 mA
Coil Classes	Non-Latching
工厂最小包装	20
寿命周期	量产
ROHS	yes
