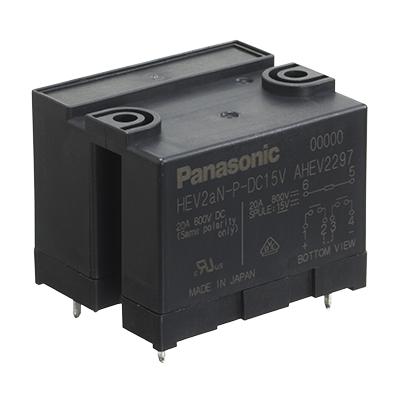

Pictures for reference only, please check the datasheet

HEV2AN-P-DC24V

Name: HEV2AN-P-DC24V
Brand: Panasonic
SKU: F002-HEV2AN-P-DC24V-61-A-2407-X-Y-90294218
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Panasonic

Mfr. Part #:

HEV2AN-P-DC24V

Walsoon Tech #:

F002-HEV2AN-P-DC24V-61-A-2407-X-Y-90294218

Description:

Power Relay 24VDC 25A DPST-NO(41mm 50mm 39.4mm) THT

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

HEV2AN-P-DC24V Details
Packing And Shipping
Payment Method
Quality Control

Panasonic,HEV2AN-P-DC24V is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for HEV2AN-P-DC24V to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Coil Classes	Non-Latching
Coil Voltage	24 VDC
Relay type	General Purpose Relays
Contact Rated Current	20 A
Termination type	Through Hole
Contact Form	DPST (2 Form A)
Coil current	80 mA
工厂最小包装	10
寿命周期	量产
ROHS	yes
Height	39.4 mm
Length	41 mm
Width	50 mm
Package	41 mm50 mm39.4 mm
