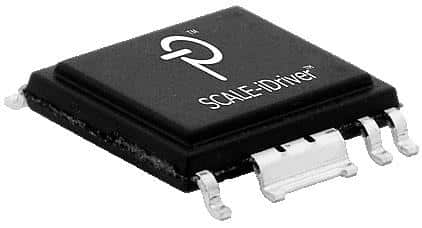

Pictures for reference only, please check the datasheet

SID1182KQ

Name: SID1182KQ
Brand: Power Integrations
SKU: F001-SID1182KQ-80-A-0000-X-Y-869-SID1182KQ
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Power Integrations

Mfr. Part #:

SID1182KQ

Walsoon Tech #:

F001-SID1182KQ-80-A-0000-X-Y-869-SID1182KQ

Description:

8A 栅极驱动器磁耦合 5000Vrms 1 通道 eSOP-R16B

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

SID1182KQ Details
Packing And Shipping
Payment Method
Quality Control

Power Integrations,SID1182KQ is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for SID1182KQ to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	eSOP-R16B
Pd-Power Dissipation	1790 mW
Termination type	SMD/SMT
Operating Supply Voltage	4.75 V~5.25 V
Output Current	8 A
工厂最小包装	48
寿命周期	量产
ROHS	no
Fan-out Factor	1 Output
Circuit Branch Number	1 Driver
Types	Inverting
Power Supply Current	4.75 V~5.25 V
Operating Temperature Range	- 40 C~+ 125 C
