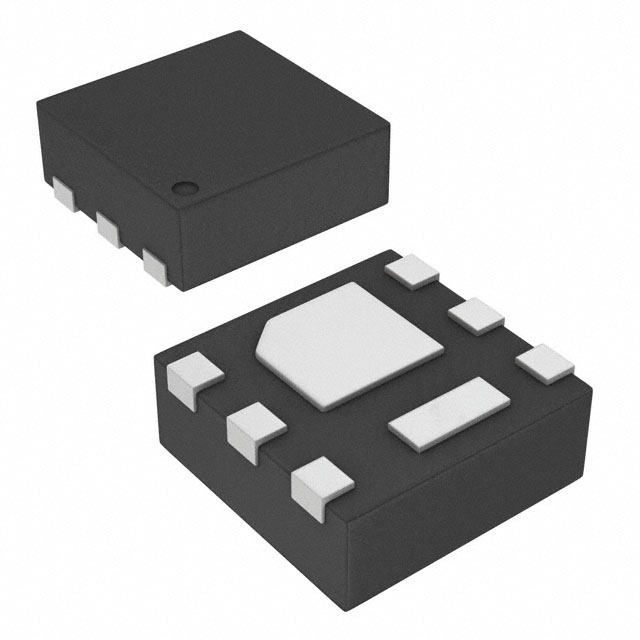

Pictures for reference only, please check the datasheet

CSD19538Q2

Name: CSD19538Q2
Brand: TI
SKU: F006-CSD19538Q2-5-C-0000-X-Y-C2838636
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Mfr. Part #:

CSD19538Q2

Walsoon Tech #:

F006-CSD19538Q2-5-C-0000-X-Y-C2838636

Description:

表面贴装型 N 通道 100V 14.4A（Ta） 2.5W（Ta），20.2W（Tc） 6-WSON（2x2）

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

CSD19538Q2 Details
Packing And Shipping
Payment Method
Quality Control

TI,CSD19538Q2 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for CSD19538Q2 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Rds On	59 mOhms
Continuous drain current	50 A
Pd-Power Dissipation	20.2 W
Termination type	SMD/SMT
VDS	100 V
工厂最小包装	3000
寿命周期	量产
ROHS	no
Transistor polarity	MOSFET
Package	WSON-6(2x2)
Qg	5.6 nC
Height	0.75 mm
VGS	20 V
Length	2 mm
Width	2 mm
Circuit Branch Number	1 Channel
Operating Temperature Range	- 55 C~+ 150 C
