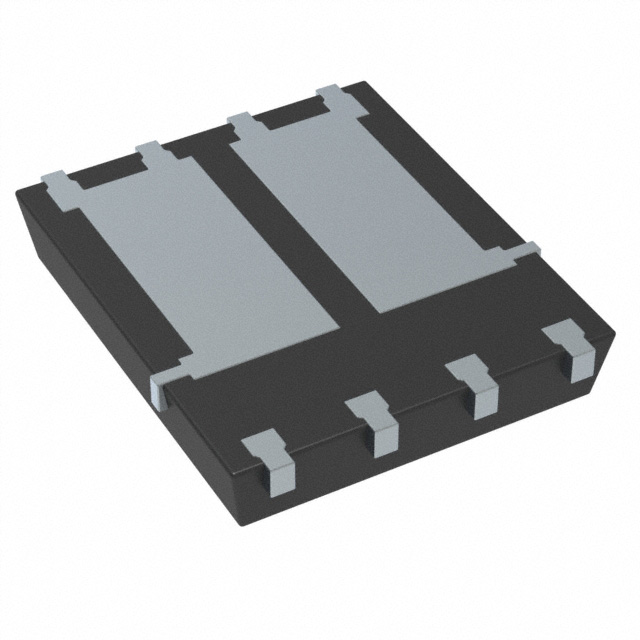

Pictures for reference only, please check the datasheet

TSM680P06DPQ56 RLG

Name: TSM680P06DPQ56 RLG
Brand: TSC
SKU: F002-TSM680P06DPQ56 RLG-167-A-0000-X-N-88212096
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

TSC

Mfr. Part #:

TSM680P06DPQ56 RLG

Walsoon Tech #:

F002-TSM680P06DPQ56 RLG-167-A-0000-X-N-88212096

Description:

Trans MOSFET P-CH 60V 12A 8-Pin PDFN EP T/R

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

TSM680P06DPQ56 RLG Details
Packing And Shipping
Payment Method
Quality Control

TSC,TSM680P06DPQ56 RLG is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for TSM680P06DPQ56 RLG to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Continuous drain current	12 A
Rds On	54 mOhms
Termination type	SMD/SMT
VDS	60 V
Pd-Power Dissipation	3.5 W
工厂最小包装	1
寿命周期	量产
ROHS	no
Operating Temperature Range	- 55 C~+ 150 C
Package	PDFN56-8
Qg	16.4 nC
Transistor polarity	MOSFET
Circuit Branch Number	1 Channel
VGS	10 V
