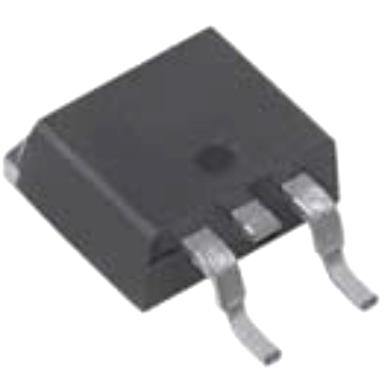

Pictures for reference only, please check the datasheet

TK1R5R04PB,LXGQ

Name: TK1R5R04PB,LXGQ
Brand: Toshiba
SKU: F004-TK1R5R04PB,LXGQ-66-A-0000-X-N-264-TK1R5R04PBLXGQTR-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Toshiba

Mfr. Part #:

TK1R5R04PB,LXGQ

Walsoon Tech #:

F004-TK1R5R04PB,LXGQ-66-A-0000-X-N-264-TK1R5R04PBLXGQTR-ND

Description:

MOSFET POWER MOSFET TRANSISTOR TO-220SM(W) PD=205W F=1MHZ

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

TK1R5R04PB,LXGQ Details
Packing And Shipping
Payment Method
Quality Control

Toshiba,TK1R5R04PB,LXGQ is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for TK1R5R04PB,LXGQ to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Package	D2PAK-3
Pd-Power Dissipation	205 W
Continuous drain current	160 A
工厂最小包装	1000
寿命周期	量产
ROHS	yes
Rds On	1.5 mOhms
Termination type	SMD/SMT
VDS	40 V
Qg	103 nC
Circuit Branch Number	1 Channel
Operating Temperature Range	+ 175 C
Transistor polarity	MOSFET
VGS	20 V
