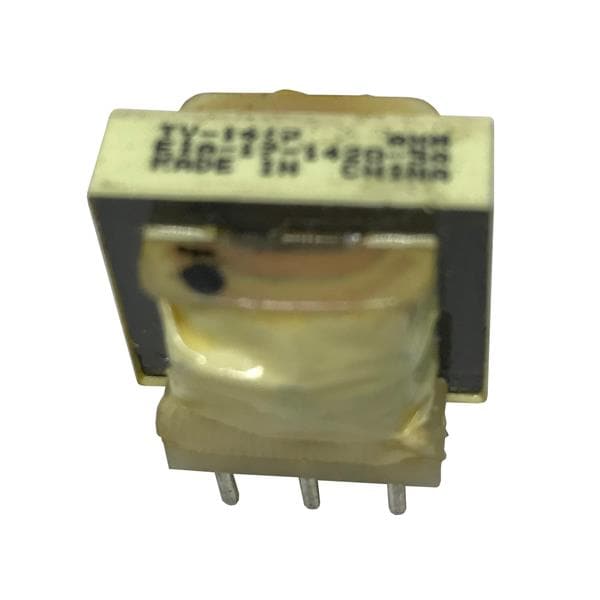

TY-141P

Name: TY-141P
Brand: Triad Magnetics
SKU: F001-TY-141P-731-A-0000-X-Y-553-TY141P
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Triad Magnetics

Mfr. Part #:

TY-141P

Walsoon Tech #:

F001-TY-141P-731-A-0000-X-Y-553-TY141P

Description:

10kCT 初级侧阻抗欧姆 10kCT 次级侧阻抗欧姆 1：1 音频变压器 200Hz ~ 15kHz 通孔

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

TY-141P Details
Packing And Shipping
Payment Method
Quality Control

Triad Magnetics,TY-141P is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for TY-141P to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Primary coil impedance	10000 Ohms CT
Secondary coil impedance	10000 Ohms CT
Operating Temperature Range	-20°C~85°C
Insulation voltage	1.5 kV
Frequency Range	200 Hz to 15000 Hz
Transformer type	数据/音频耦合
Termination type	Radial
工厂最小包装	1
寿命周期	量产
ROHS	no
Height	18.8 mm
Package	0.812"长x0.700"宽（20.62mmx17.78mm）
Length	20.6 mm
Width	17.8 mm
