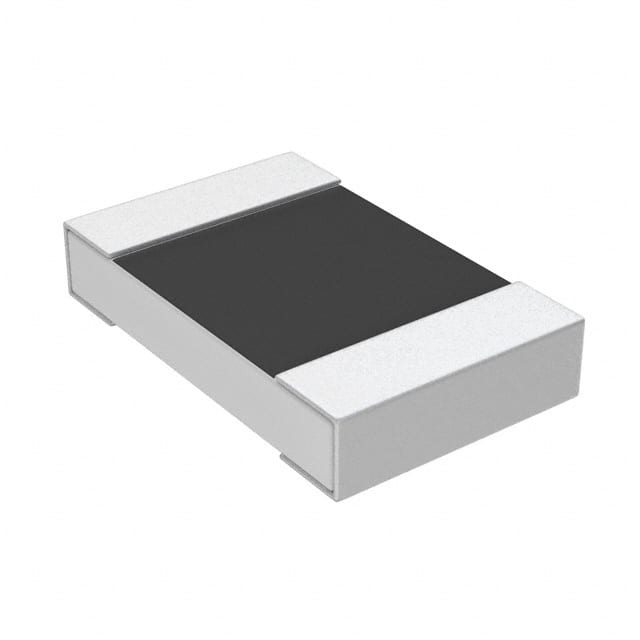

Pictures for reference only, please check the datasheet

PTN0805E9002BST1

Name: PTN0805E9002BST1
Brand: Vishay
SKU: F004-PTN0805E9002BST1-67-A-0000-X-Y-764-1550-1-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Vishay

Mfr. Part #:

PTN0805E9002BST1

Walsoon Tech #:

F004-PTN0805E9002BST1-67-A-0000-X-Y-764-1550-1-ND

Description:

90kΩ ±0.1% 200mW 0805 ±25ppm/°C 100V 贴片

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

PTN0805E9002BST1 Details
Packing And Shipping
Payment Method
Quality Control

Vishay,PTN0805E9002BST1 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for PTN0805E9002BST1 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

Termination type	贴片
Resistance	90kΩ
Temperature Factor	±25ppm/°C
Package	0805
Length	2.03mm
Width	1.27mm
Tolerance	±0.1%
Power	200mW
Height	0.84mm
Max. working Voltage	100V
工厂最小包装	1000
寿命周期	量产
ROHS	yes
Operating Temperature Range	-55°C~+155°C
--	薄膜
Pin numbers	2pin
英制封装	0805
Operating Temperature-Min	-55℃
Operating Temperature-Max	155℃
