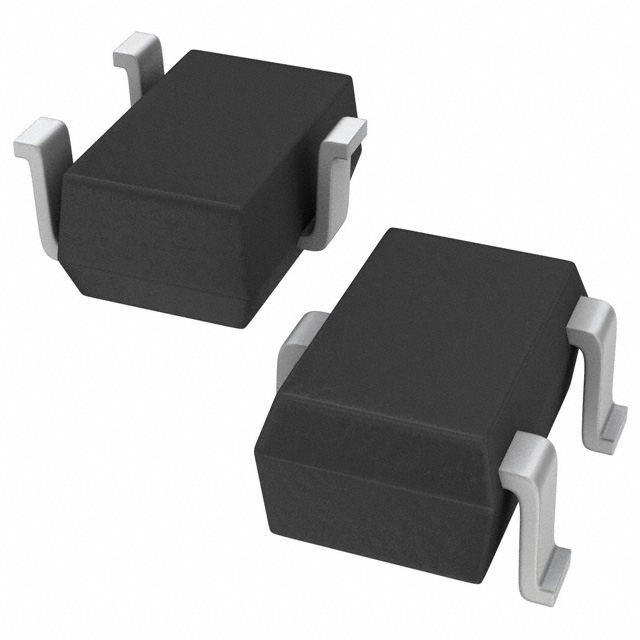

Pictures for reference only, please check the datasheet

VESD08A2-03GHG3-08

Name: VESD08A2-03GHG3-08
Brand: Vishay
SKU: F004-VESD08A2-03GHG3-08-67-A-0000-X-N-VESD08A2-03GHG3-08GITR-ND
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer:

Vishay

Mfr. Part #:

VESD08A2-03GHG3-08

Walsoon Tech #:

F004-VESD08A2-03GHG3-08-67-A-0000-X-N-VESD08A2-03GHG3-08GITR-ND

Description:

15.3V 夹子 6.6A（8/20µs） Ipp TVS - 二极管表面贴装型 SOT-323

Delivery:

Payment:

PayPal, Credit Card, Wire Transfer, Western Union

Add To BOM

In stock

Tips: Best quotation will be offered within 24h, upon receiving your quick RFQ.

Quick RFQ

Sell your excess inventory

VESD08A2-03GHG3-08 Details
Packing And Shipping
Payment Method
Quality Control

Vishay,VESD08A2-03GHG3-08 is available at Walsoon Tech.100% original and new guarantee. If comprehensive data for VESD08A2-03GHG3-08 to optimize the supply chain, including costdown, time-saving, cross references, parametric, counterfeit risk, alternative components, obsolescence management forecasts is expected, please contact our professional team.

Specification

VRWM	8V
Polarity	单向通道
VBR	9.5V
Package	SOT-323
Operating Temperature-Max	+150℃
Qualification level	AEC-Q101
Operating Temperature-Min	-55℃
Operating Temperature Range	-55℃~+150℃
Peak Pulse Current	6.6A
junction capacitance	47pF
Clamping voltage	15.3V
工厂最小包装	1
寿命周期	量产
ROHS	no
Maximum Ppp	100W
Vf-Forward Voltage	1.9V
Termination type	贴片
Pd-Power Dissipation	100W
